Misting Nozzle Brass 0.3mm (10 Pcs)

Buy Misting Nozzle Brass 0.3mm (10 Pcs) with stainless steel orifice, 10-24 UNC male thread and sealing O-ring for garden irrigation and cooling systems.

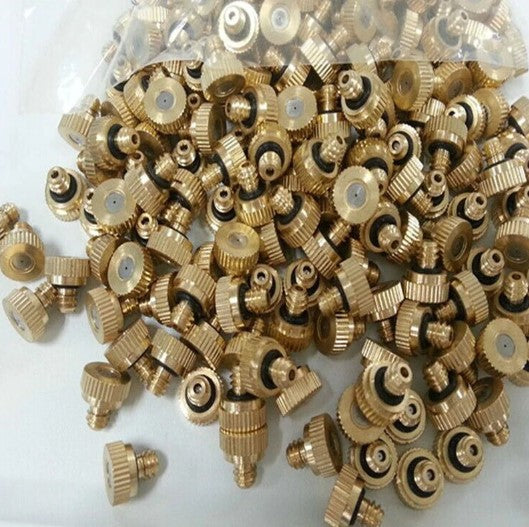

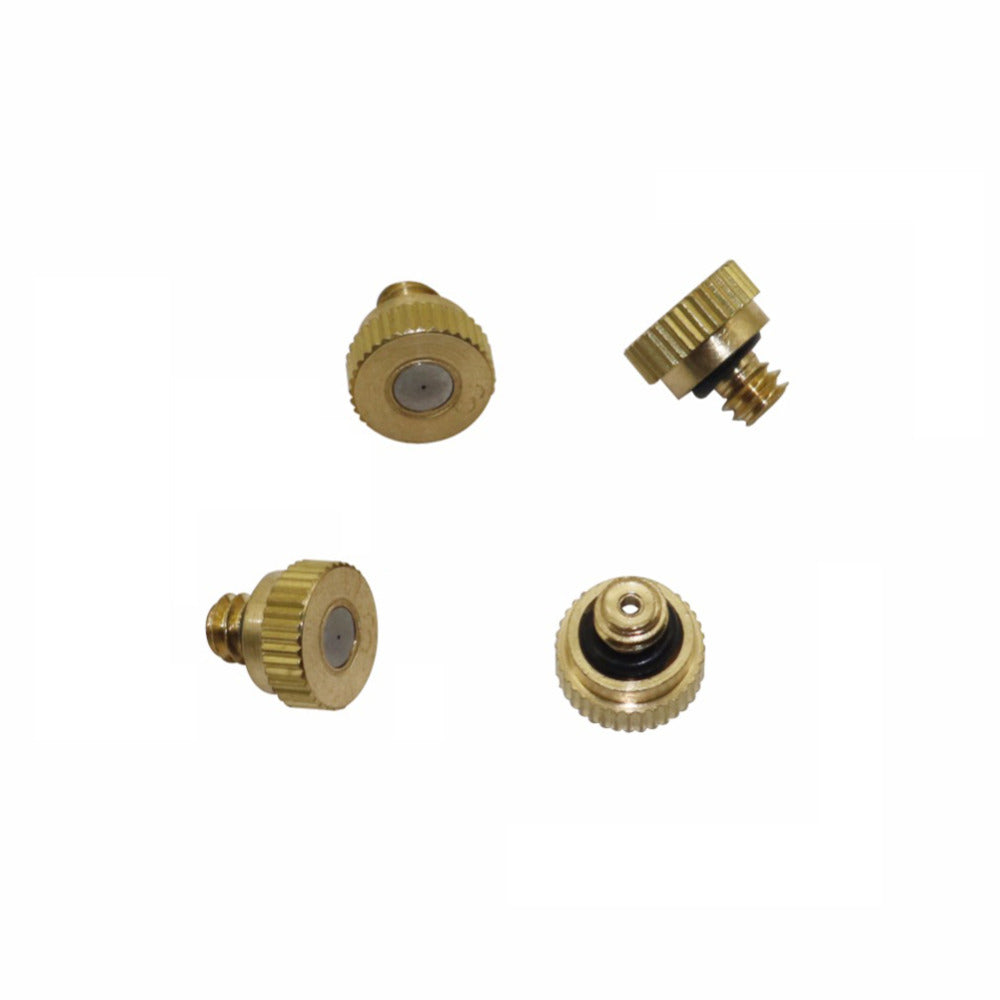

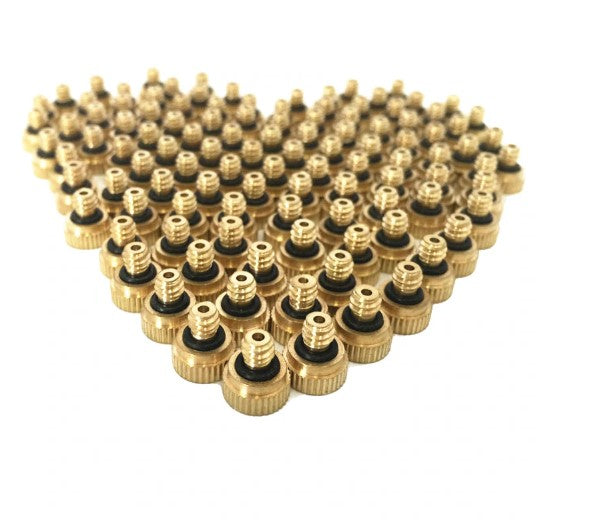

Misting Nozzle Brass 0.3mm is designed to produce a fine water mist for garden irrigation, outdoor cooling, greenhouse humidification and other misting applications. It features a brass body with a stainless steel orifice, providing a practical combination of materials for regular use in compatible misting systems.

The 0.3 mm orifice produces fine water droplets that can be used for controlled mist distribution. Each nozzle includes a self-sealing O-ring to help prevent water leakage, without requiring additional thread tape or sealant for the specified fitting. Its 10-24 UNC male thread allows installation in compatible misting connections. Supplied as a pack of 10 pieces, these nozzles are suitable for gardeners, greenhouse operators, agricultural users and outdoor cooling system installations.

Main Features

• 10-Piece Pack: Includes 10 misting nozzles with a 0.3 mm orifice.
• 0.3 mm Orifice Size: Designed to produce a fine water mist.
• Brass Body: Made with durable brass material.

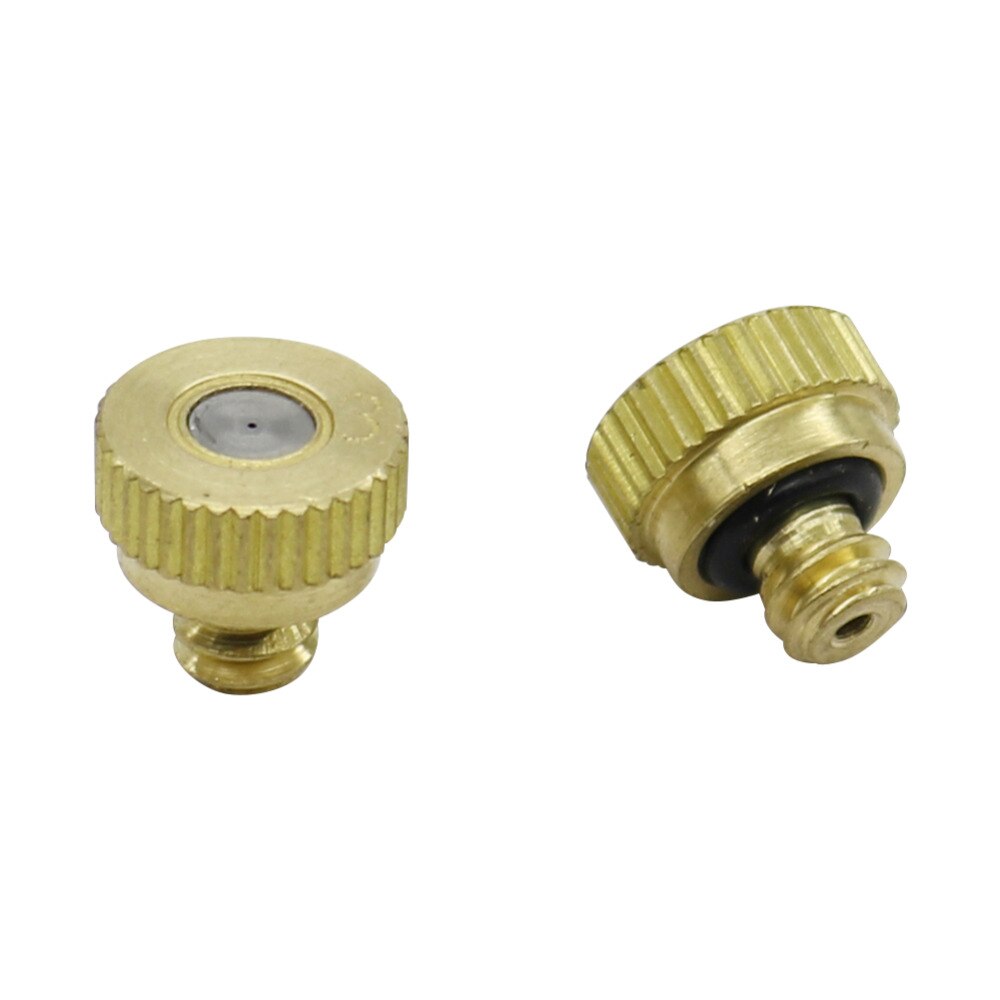

• Stainless Steel Orifice: Features a stainless steel spraying orifice.

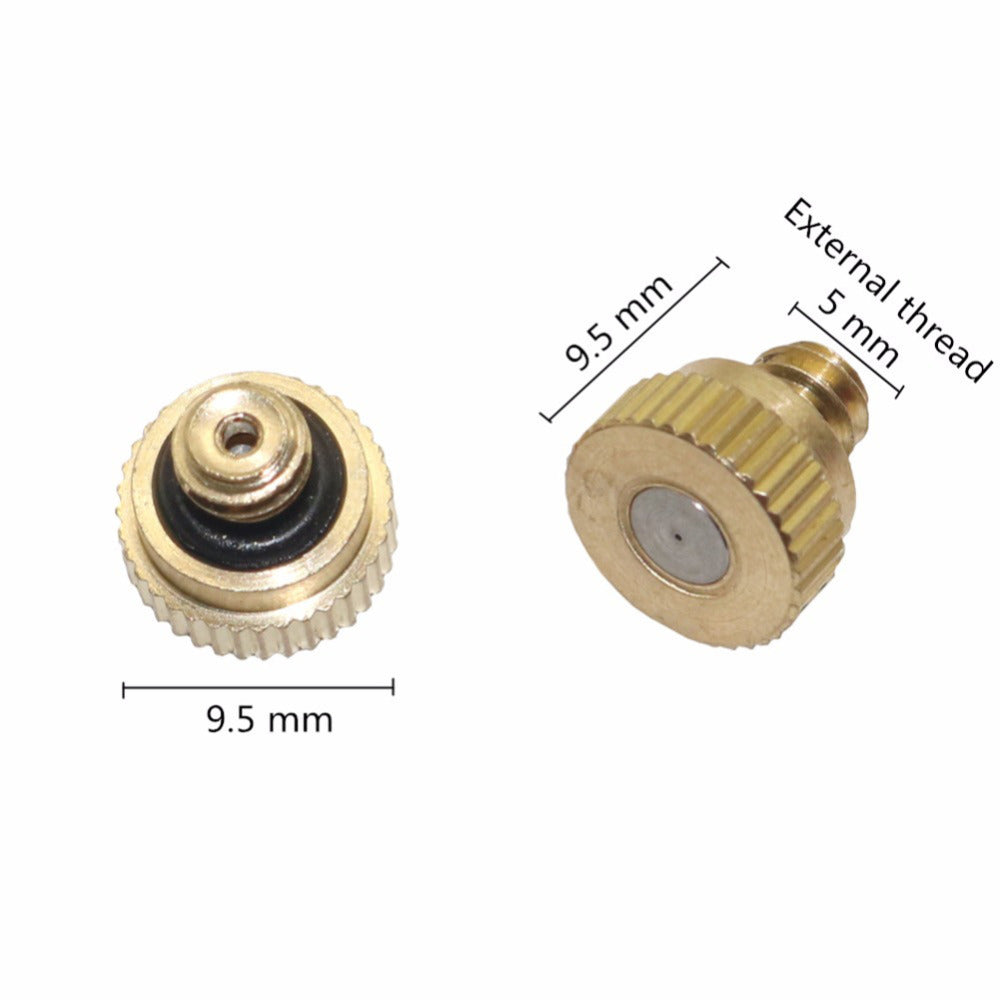

• Male Thread Connection: Equipped with a 10-24 UNC threaded connection.

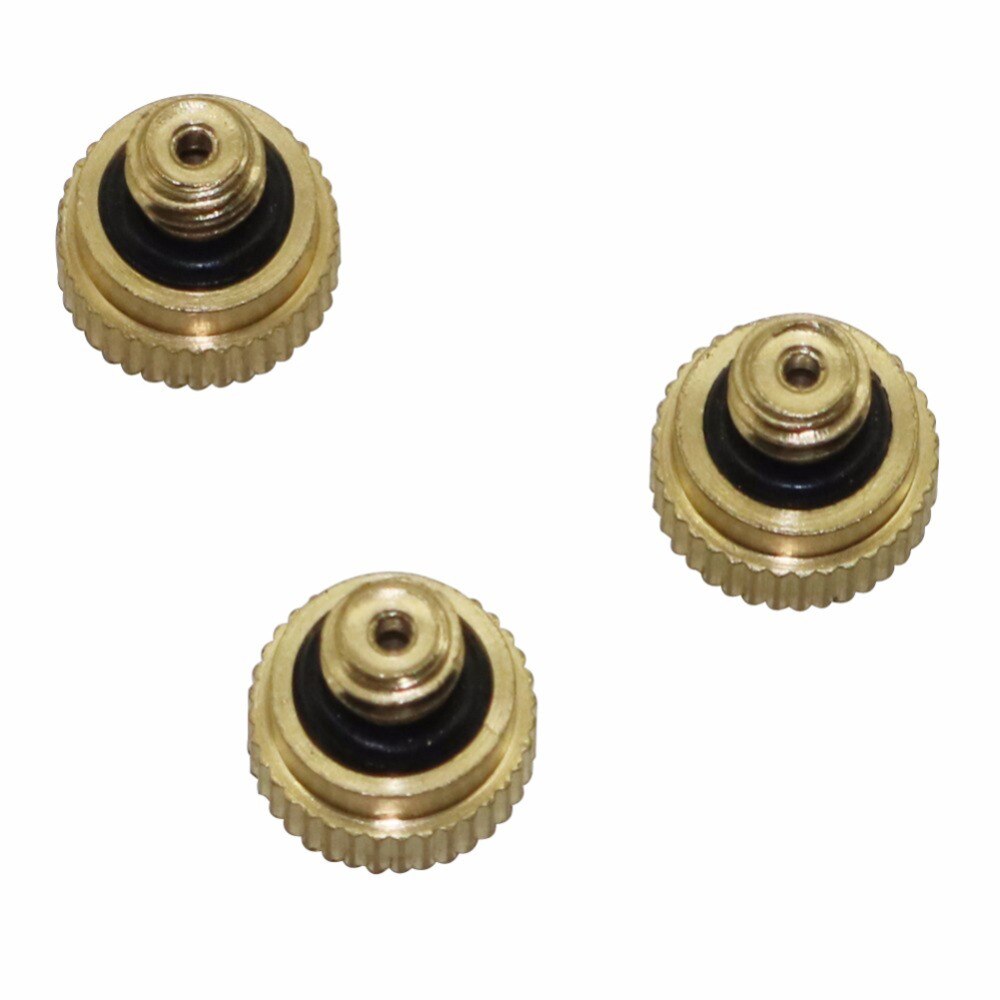

• Self-Sealing O-Ring: Each nozzle includes an O-ring to help prevent leakage.
• Leak-Resistant Design: Designed to provide a secure fitting without additional thread tape or sealant when correctly installed.
• Wide Pressure Compatibility: Specified pressure range of 2–120 bar.
• Fine Mist Production: Suitable for applications requiring controlled water mist distribution.
• Simple Maintenance: Periodic cleaning helps remove mineral deposits and maintain the nozzle opening.
• Multiple Applications: Suitable for garden irrigation, greenhouse humidification and outdoor cooling.
• Compact Design: Small nozzle construction for installation in compatible misting systems.

Product Specifications

Where Can You Use Misting Nozzle Brass 0.3mm?

These brass misting nozzles are suitable for different applications where fine water spraying, cooling or humidification is required.

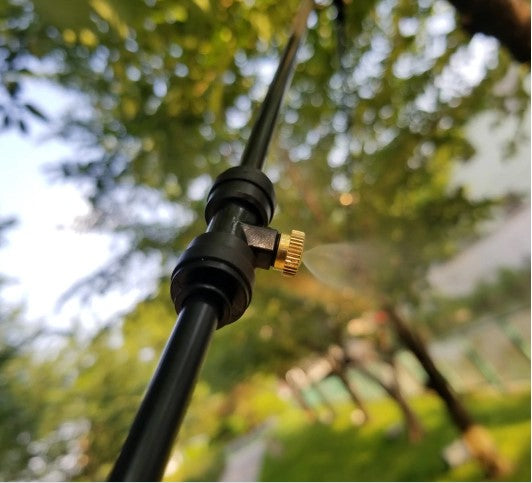

1. Garden Irrigation

Suitable for garden misting systems where fine water distribution is required for plants and outdoor green spaces.

2. Greenhouses

Can be installed in compatible greenhouse misting systems to support humidity management and environmental control.

3. Outdoor Cooling Systems

Useful for patio cooling, outdoor seating areas and other misting installations designed to provide evaporative cooling.

4. Nurseries

Suitable for compatible misting arrangements used in plant nurseries and propagation areas.

5. Agricultural Applications

Can be incorporated into agricultural misting systems for suitable crop-growing and environmental applications.

6. Poultry and Livestock Areas

Suitable for compatible cooling systems in poultry houses, animal shelters and other livestock environments.

7. Restaurants and Outdoor Seating Areas

Can be used in outdoor patio misting systems to provide a cooling effect in suitable commercial spaces.

8. Industrial Cooling

Suitable for compatible industrial misting arrangements used for evaporative cooling and temperature management.

9. Dust and Odour Control

Can be incorporated into appropriately designed misting systems for dust suppression and odour-control applications.

10. Landscaping

Useful for outdoor landscaping projects, decorative misting installations and selected cooling applications.

How to Use Misting Nozzle Brass 0.3mm

Follow these steps when installing and operating the nozzle.

1. Prepare the Misting System: Make sure the misting pipe or fitting is compatible with the 10-24 UNC male thread.
2. Check the Nozzle: Inspect the brass body, stainless steel orifice and O-ring before installation.
3. Clean the Connection: Remove dirt or debris from the threaded connection to ensure proper fitting.
4. Install the Nozzle: Carefully screw the nozzle into the compatible connection.
5. Check the O-Ring: Ensure the self-sealing O-ring is correctly positioned.
6. Tighten Carefully: Secure the nozzle without applying excessive force.
7. Check Operating Pressure: Ensure the complete misting system operates within the specified 2–120 bar pressure range and that all components are rated for the selected pressure.
8. Start the Water Supply: Operate the system according to the misting equipment manufacturer's instructions.
9. Check Mist Distribution: Observe the spray output to make sure the nozzle is producing a consistent fine mist.
10. Inspect for Leakage: Check the connection for unwanted water leakage during operation.

Important Safety Precautions

• Make sure the nozzle thread matches the misting system connection before installation.
• Check that pipes, fittings and other system components are rated for the operating pressure.
• Never exceed the specified maximum pressure of 120 bar.
• Turn off the water supply and safely release system pressure before removing or replacing the nozzle.
• Wear suitable eye protection during installation and maintenance.
• Avoid directing high-pressure mist or water towards people or animals.
• Do not use damaged or incorrectly fitted O-rings.
• Avoid excessive tightening, which may damage the thread or sealing components.
• Keep small nozzle components away from children.
• Use clean and appropriately filtered water to reduce the risk of blockage.
• Follow the operating instructions for the complete misting system.

Maintenance and Care

Regular cleaning is important because the small 0.3 mm orifice can become blocked by mineral deposits and dirt.

• Periodic Nozzle Cleaning: Clean the nozzle regularly to remove mineral deposits that may accumulate during use.
• Remove Mineral Deposits: Soak the nozzle in a suitable misting nozzle cleaning solution according to the cleaner manufacturer's instructions.
• Rinse Thoroughly: After cleaning, rinse the nozzle properly before reinstalling it.
• Inspect the Orifice: Check the stainless steel orifice for visible blockage or damage.
• Check the O-Ring: Inspect the self-sealing O-ring for wear, damage or displacement.
• Check Thread Condition: Make sure the male thread remains clean and undamaged.
• Inspect for Leakage: Check the nozzle connection during operation.
• Use Filtered Water: Appropriate water filtration helps reduce mineral and particle buildup.
• Avoid Sharp Tools: Do not insert sharp metal objects into the small orifice, as this may damage its opening.
• Proper Storage: Keep spare nozzles in a clean and dry place when not in use.

Why Use Misting Nozzle Brass 0.3mm?

A good misting system depends on the correct nozzle size, suitable water pressure and proper installation. The 0.3 mm brass misting nozzle is designed for applications requiring fine water droplets, making it suitable for garden misting, greenhouse humidification and outdoor cooling arrangements.

Its brass body and stainless steel orifice provide a practical construction for regular use in compatible systems. The included self-sealing O-ring helps prevent leakage at the connection, reducing the need for additional thread tape or sealant when the nozzle is installed correctly.

The 10-piece pack is convenient for installations that require multiple misting points or for replacing existing nozzles during routine maintenance. Its 10-24 UNC male thread makes it suitable for compatible fittings, while the specified 2–120 bar pressure range provides flexibility for appropriately rated misting setups.

For gardeners, greenhouse operators, landscapers and agricultural users, these nozzles offer a practical option for maintaining fine-mist distribution across different applications.

Frequently Asked Questions (FAQs)

Q1. What is Misting Nozzle Brass 0.3mm used for?

It is used in misting systems for garden irrigation, greenhouse humidification, outdoor cooling, landscaping and other applications requiring fine water mist.

Q2. How many nozzles are included in the package?

The package contains 10 misting nozzles, each with a 0.3 mm orifice.

Q3. What is the orifice size of these nozzles?

Each nozzle has a 0.3 mm orifice designed to produce fine water mist.

Q4. What type of thread connection does this nozzle have?

It features a 10-24 UNC male threaded connection. Make sure your misting system fitting is compatible before installation.

Q5. What materials are used in the nozzle?

The nozzle features a brass body and a stainless steel orifice.

Q6. What is the working pressure range?

The specified working pressure range is 2–120 bar. The complete misting system must also be rated for the selected operating pressure.

Q7. Does the nozzle require additional thread tape or sealant?

Each nozzle includes a self-sealing O-ring designed to provide a leak-resistant connection without additional thread tape or sealant when correctly installed.

Q8. How should these misting nozzles be cleaned?

Periodic soaking in a suitable misting nozzle cleaner can help remove mineral deposits. Rinse the nozzle thoroughly after cleaning and check the orifice before reinstalling it.

Final Product Summary

Misting Nozzle Brass 0.3mm (10 Pcs) is designed for fine water mist production in garden irrigation, greenhouse humidification and outdoor cooling systems. Each nozzle features a durable brass body, stainless steel orifice and 10-24 UNC male thread connection. The 0.3 mm orifice provides fine mist distribution, while the included self-sealing O-ring helps prevent unwanted leakage. With a specified working pressure range of 2–120 bar, these nozzles are suitable for compatible misting installations. The 10-piece pack is a convenient choice for gardeners, greenhouse operators, landscapers and agricultural users. Choose this nozzle kit for your compatible misting system.
