Sprinkler PY-5

Buy Sprinkler PY-5, a 20 Series full-circle impact sprinkler with 9°, 14° and 23° trajectories for agricultural, nursery and orchard irrigation.

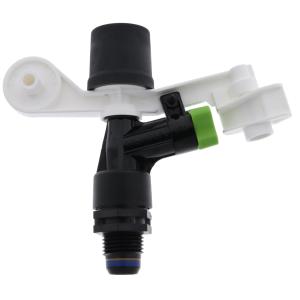

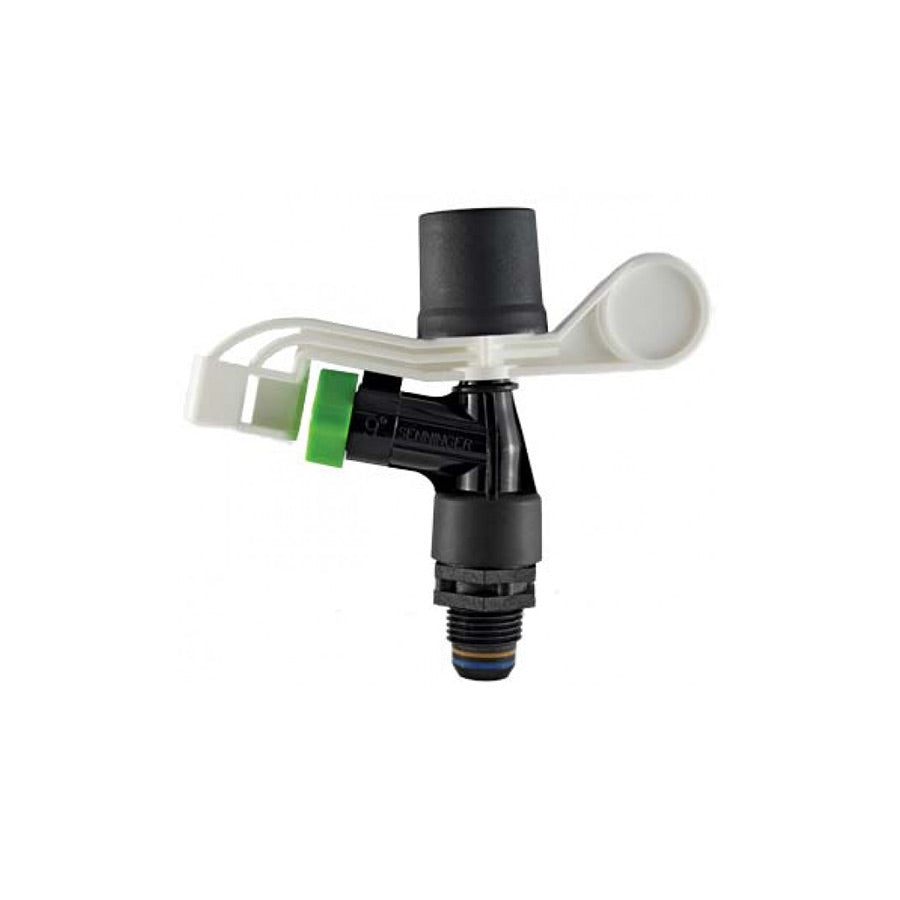

Sprinkler PY-5 is a full-circle impact sprinkler designed for agricultural irrigation, nurseries and other watering applications. Based on the Senninger 20 Series impact sprinkler design, it distributes water through a rotating sprinkler mechanism to provide coverage around the installation point.

It is suitable for irrigation systems requiring controlled water distribution at relatively low flow rates. The sprinkler is available with three trajectory options: 9°, 14° and 23°, allowing users to select a suitable spray pattern for different field conditions. These options are useful for areas exposed to wind, under-tree irrigation and applications where greater water throw distance is required.

With its 360-degree rotation and different nozzle configurations, this sprinkler can be incorporated into suitable irrigation layouts for farms, nurseries, orchards and gardens.

Main Features

• Full-circle sprinkler with 360° rotation.

• Impact sprinkler design for agricultural irrigation.

• Available in 9°, 14° and 23° trajectory options.

• Designed for relatively low-flow irrigation applications.

• Square-orifice nozzle design.

• WedgeDrive technology available in the 20 Series.

• Designed to provide uniform water distribution near and away from the sprinkler.

• 9° trajectory helps reduce wind drift and evaporation.

• 14° trajectory is suitable for under-tree irrigation.

• 23° trajectory provides greater water throw distance.

• Suitable for solid-set and nursery irrigation systems.

Specifications

Where Can You Use It?

The Sprinkler PY-5 is designed for irrigation applications where water needs to be distributed over a circular area.

• Agricultural Fields: Suitable for watering crops across open farming areas.

• Plant Nurseries: Helps distribute water across nursery beds and plant-growing areas.

• Orchards: The 14° trajectory is suitable for under-tree irrigation.

• Fruit Farms: Can be incorporated into irrigation systems for fruit-growing areas.

• Vegetable Farms: Useful for watering vegetable crops through a properly designed sprinkler system.

• Gardens and Green Spaces: Suitable for maintaining planted areas and landscaped spaces.

• Solid-Set Irrigation: Designed for use in fixed sprinkler layouts.

• Wind-Exposed Areas: The lower 9° trajectory is intended to help reduce wind drift and evaporation.

How to Use the Product

Follow these general steps when installing and operating the sprinkler:

1. Select the Installation Location: Identify the area that requires irrigation and determine the appropriate sprinkler spacing.

2. Choose the Trajectory: Select 9°, 14° or 23° according to the field conditions and irrigation requirements.

3. Check the Connection: Make sure the sprinkler connection matches the irrigation pipe or fitting.

4. Install the Sprinkler: Securely attach the sprinkler to a compatible riser or irrigation connection.

5. Check the Nozzle: Confirm that the correct nozzle configuration is installed for the required water flow.

6. Start the Water Supply: Operate the irrigation system within the recommended pressure range.

7. Check Water Distribution: Observe the sprinkler rotation and coverage to ensure water is distributed across the intended area.

8. Inspect After Operation: Check for leakage, blockage or irregular sprinkler movement.

For large irrigation installations, sprinkler spacing, nozzle selection and operating pressure should be determined according to the irrigation system design.

Important Safety Precautions

• Install the sprinkler using compatible pipe connections and fittings.

• Ensure the sprinkler is properly secured before starting the water supply.

• Operate within the recommended pressure range.

• Do not exceed the specified operating pressure.

• Keep the sprinkler area clear of unnecessary obstacles.

• Avoid standing directly in front of pressurised sprinkler connections during installation or servicing.

• Turn off the water supply before removing or inspecting the sprinkler.

• Do not attempt to adjust or remove components while the system is pressurised.

• Inspect the sprinkler regularly for visible damage or leakage.

• Follow the irrigation system manufacturer's installation and operating instructions.

Maintenance

Regular maintenance helps keep the impact sprinkler operating properly.

• Clean the Nozzle: Check the nozzle regularly for dirt or debris that could affect water distribution.

• Inspect the Connection: Check the threaded connection for leakage or damage.

• Check Rotation: Make sure the impact mechanism moves freely during operation.

• Inspect Water Distribution: Look for uneven spraying or changes in the coverage pattern.

• Check the Riser: Ensure the sprinkler mounting and riser remain secure.

• Remove Blockages: Clean any accessible water passages according to the manufacturer's instructions.

• Inspect Components: Check for worn or damaged parts and replace them where necessary.

• Seasonal Storage: If the irrigation system is not being used, follow the manufacturer's recommended storage procedure.

Why Use Sprinkler PY-5?

The Sprinkler PY-5 is a practical option for farmers and irrigation professionals who need controlled water distribution across agricultural areas. Its full-circle rotation allows water to be distributed around the sprinkler, making it suitable for fixed irrigation arrangements in fields, nurseries and orchards.

One of its useful features is the availability of three trajectory options. The 9° trajectory is suitable for windy conditions, while the 14° option is intended for under-tree irrigation. The 23° trajectory offers a greater throw distance for applications where wider coverage is required.

The sprinkler's impact mechanism and different nozzle configurations provide flexibility when planning an irrigation system. By selecting the appropriate trajectory, nozzle and operating pressure, users can configure the sprinkler according to their crop layout and watering requirements.

Frequently Asked Questions (FAQs)

Q1. What is Sprinkler PY-5 used for?

It is used for agricultural irrigation, nursery watering, orchard irrigation and other applications requiring circular water distribution.

Q2. Is Sprinkler PY-5 a full-circle sprinkler?

Yes. It features a full-circle impact sprinkler design with 360-degree rotation.

Q3. What trajectory options are available?

The 20 Series offers three trajectory options: 9°, 14° and 23°.

Q4. Which trajectory is suitable for windy conditions?

The 9° trajectory is designed to help reduce wind drift and evaporation, making it suitable for areas exposed to wind.

Q5. Which trajectory is suitable for under-tree irrigation?

The 14° trajectory is intended for under-tree irrigation applications.

Q6. What is the operating pressure of the 20 Series?

The manufacturer's specified operating pressure range is 1.72–3.45 bar. The required pressure depends on the selected model and nozzle configuration.

Q7. What is the flow rate of this sprinkler series?

The manufacturer's published 20 Series range is 191–1,619 litres per hour, depending on the model and nozzle configuration.

Q8. How should the sprinkler be maintained?

Regularly inspect and clean the nozzle, check the connection for leakage, and make sure the impact mechanism rotates correctly. Always turn off the water supply before servicing.

Final Product Summary

The Sprinkler PY-5 is a full-circle impact sprinkler designed for agricultural irrigation, nurseries, orchards and other watering applications. Based on the 20 Series design, it offers 360-degree rotation and three trajectory options: 9°, 14° and 23°. These options allow users to select a suitable spray pattern for windy conditions, under-tree irrigation or greater water throw distance. With a published series pressure range of 1.72–3.45 bar and flow rates depending on nozzle configuration, it can be incorporated into suitable solid-set irrigation systems. It is a practical choice for farmers and irrigation professionals looking for flexible water distribution. Explore this sprinkler for your irrigation requirements.
